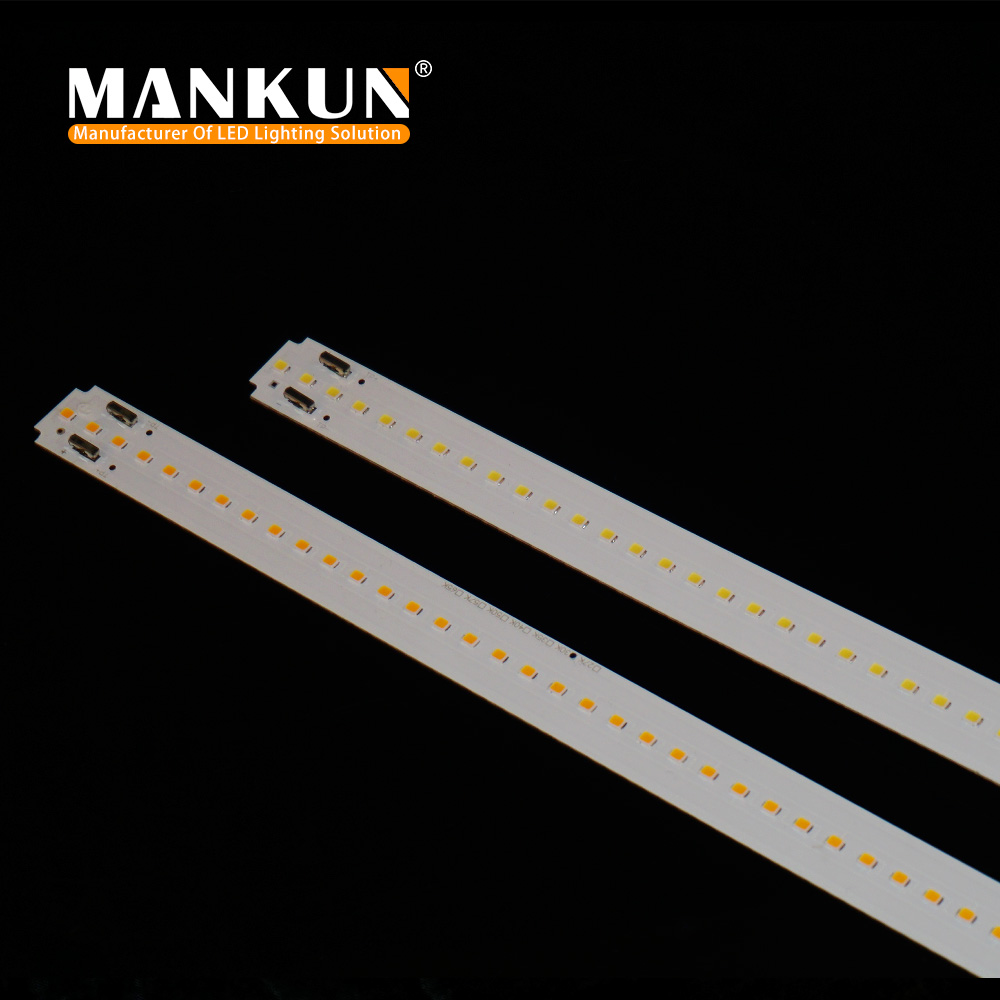

20mm Width SMD2835 156PCS LED PCB Board For Industry Linear Lighting

Product Categories
Guangzhou Mankun Electronic Co., Ltd.
Contact Now

20mm Width SMD2835 156PCS LED PCB Board For Industry Linear Lighting

Brand Name : mankun

Model Number : AL20076

Certification : ce, RoHS, ce, RoHS

Place of Origin : Guangdong, China

MOQ : 1000 Sets

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 100000pcs per Month

Delivery Time : 5-10 work days

Packaging Details : LED module bubble packaging, 10PCS each box, 100PCS a box

Color Temperature(CCT) : 4000K White

Input Voltage(V) : 36.4-42V

PCB Size : 1142*20*1.6mm

Luminous flux(lm) : 131Lm/W

Viewing angle(°) : 120

Power : 50W

Contact Now

20mm Width SMD2835 156PCS LED PCB Board For Industry Linear Lighting





Informacoes adicionais:

  • Dimensoes:1142 x 20mm
  • High color rendering(CRI > 80)
  • Conectores tipo push-pull
  • Excellent color consistency of 5 SDCM
  • High efficacy of the module up to 130Lm/W@1250mA
  • Light sources colors: all colors available



Principais Aplicacoes:
  •  Luminarias comerciais
  •  Residential
  •  Office
  •  Retail
  •  Industry



Products Description



 Model Number

 20076

 Power

 51W

 Voltage

 36.5V - 42V DC

 Product Current

 1250mA

 PCB Material

 aluminum pcb board

 Color Temperature

 4000K CCT

 Light Source Chip

 Lumileds

 LED Angle

 Horizontal 120

 Service Life

 60000H



Features:





Input Voltage

36.5V - 42V DC

Power

50W

Lumen

6000Lm

Efficiency

131Lm/W

CCT

4000K

CRI

>80

SDCM

<5

Driver

on/off,DALI,0-10V

Driver brand

WM,Coreshine or Tridonic

Life time

50,000H

Ambient temperature(ta)IP20

30-550C

Warranty

five years

PCB Size

1142*20*1.6mm




Applications:

  • Other color temperatures under consultation.
  • The values of Luminous Flux, Efficiency, Tension and Power are based on technical data provided by Samsung. Optical losses are not being considered and thermal (luminaire mechanic) or electrical losses (LED Driver). All technical data refer only to the LED module. To get the final result of the lamp,must undergo tests in laboratories accredited by EVERFINE. All values are theoretical, and there may be variations in the end result.
  • Medium tension of the module. This value may vary between +/-15%. This variation should be considered in choosing LED Driver.





20mm Width SMD2835 156PCS LED PCB Board For Industry Linear Lighting













Product Tags:

156PCS LED PCB Board



20mm Width LED PCB Board



SMD2835 LED PCB Board


Buy cheap 20mm Width SMD2835 156PCS LED PCB Board For Industry Linear Lighting product

20mm Width SMD2835 156PCS LED PCB Board For Industry Linear Lighting Images
